Key Clamp Handrail Kit | Mid Post

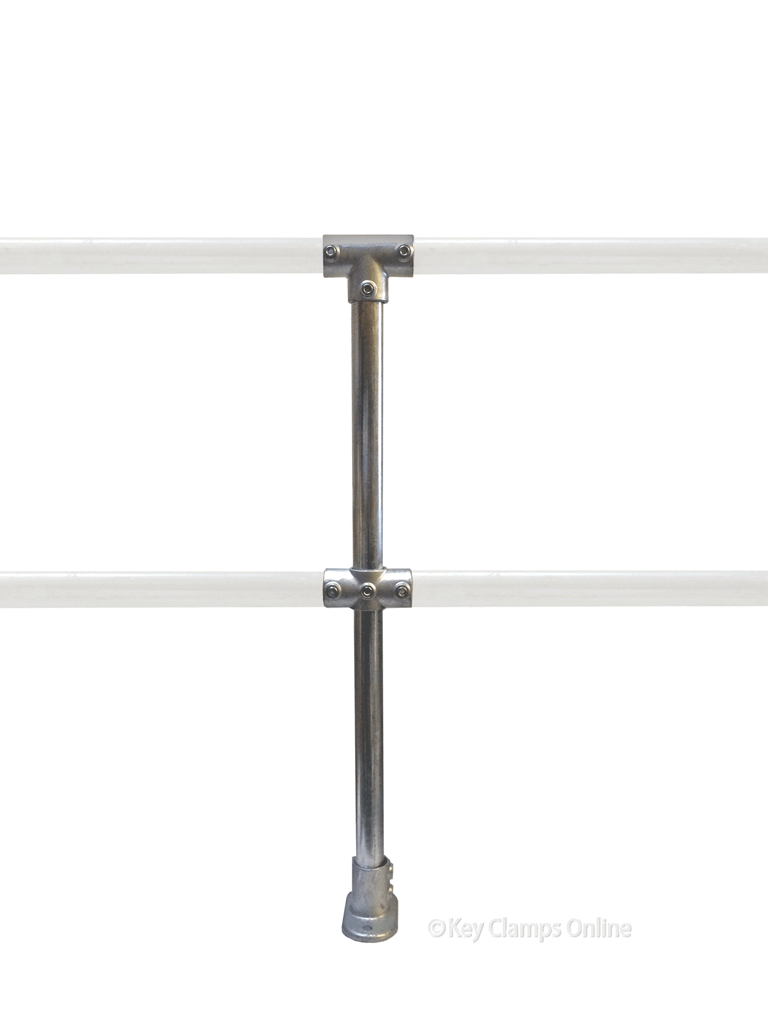

This assembly is a pre-formed, ready assembled, intermediate handrail / guardrail upright post as a quick and cost-effective means of the erection of a key clamp handrail.

This item includes 1 no. A004 Long Tee, 1 no. A022 Middle Cross and 1 no. A012 Key Clamp Base Plate.

These kits are available in 3 sizes: 33.7mm, 42.4mm and 48.3mm.

The assembly has been designed in order to achieve a finished height of 1100mm complete with a 550mm (half height) mid rail.

Other items in our range of key clamp handrail kits include the End Post and 90 Degree Corner.

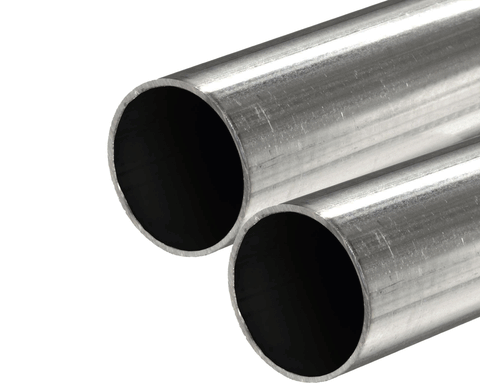

Galvanised tube is sold for these kits in pairs of 1450mm in order to achieve 1500mm upright post spacings.  Although you may wish to consider the use of longer lengths for the top rail.
